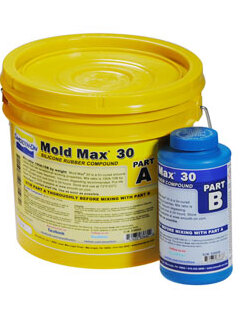

Mold Max™ Silicones are tin-cured silicone rubber compounds that have exceptional working properties and library life. Mold Max™ Silicones feature Smooth-On’s exclusive “Libra™” catalyst for long library life. Mold Max™ silicones can be pigmented with Silc Pig™ silicone colorants. Pot life for the pourable silicones is 45 minutes and they cure overnight at room temperature.

Vacuum degassing mixed material using a vacuum pump and chamber to remove entrapped air is recommended.

Mold Max™ Silicones will reproduce the finest detail and are suitable for a variety of industrial and art related applications including making molds for reproducing prototypes, furniture, sculpture and architectural elements.
Mold Max™ 30 can be thickened with THI-VEX™ additive for brush-on applications.
Mold Max™ Silicones can be used to cast a variety of materials including wax, gypsum, low melt alloys/metals and urethane, epoxy or polyester resins (without using a release agent).

*Mix Ratio By Weight*	100A:10B
*Pot Life*	45 minutes
*Cure Time*	24 hours
*Shore Hardness*	30 A
*Specific Gravity*	1.18 g/cc
*Specific Volume*	23.5 cu. in./lb.
*Color*	Pink
*Tensile Strength*	577 psi
*100% Modulus*	110 psi
*Elongation @ Break*	300 %
*Die B Tear Strength*	125 pli
*Useful Temperature (max)*	400 °F
*Useful Temperature (min)*	-65 °F
*Volume Resistance*	8.29E+11 ohm
*Volume Resistivity*	5.83E+13 ohm/cm
*Dielectric Constant, 100Hz*	3.29
*Dielectric Strength*	330 volts/mil
*Dissipation Factor, 100Hz*	0.005
*Shrinkage*	0.002 in. / in.
*Mixed Viscosity*	25,000 cps
